Ironworkers

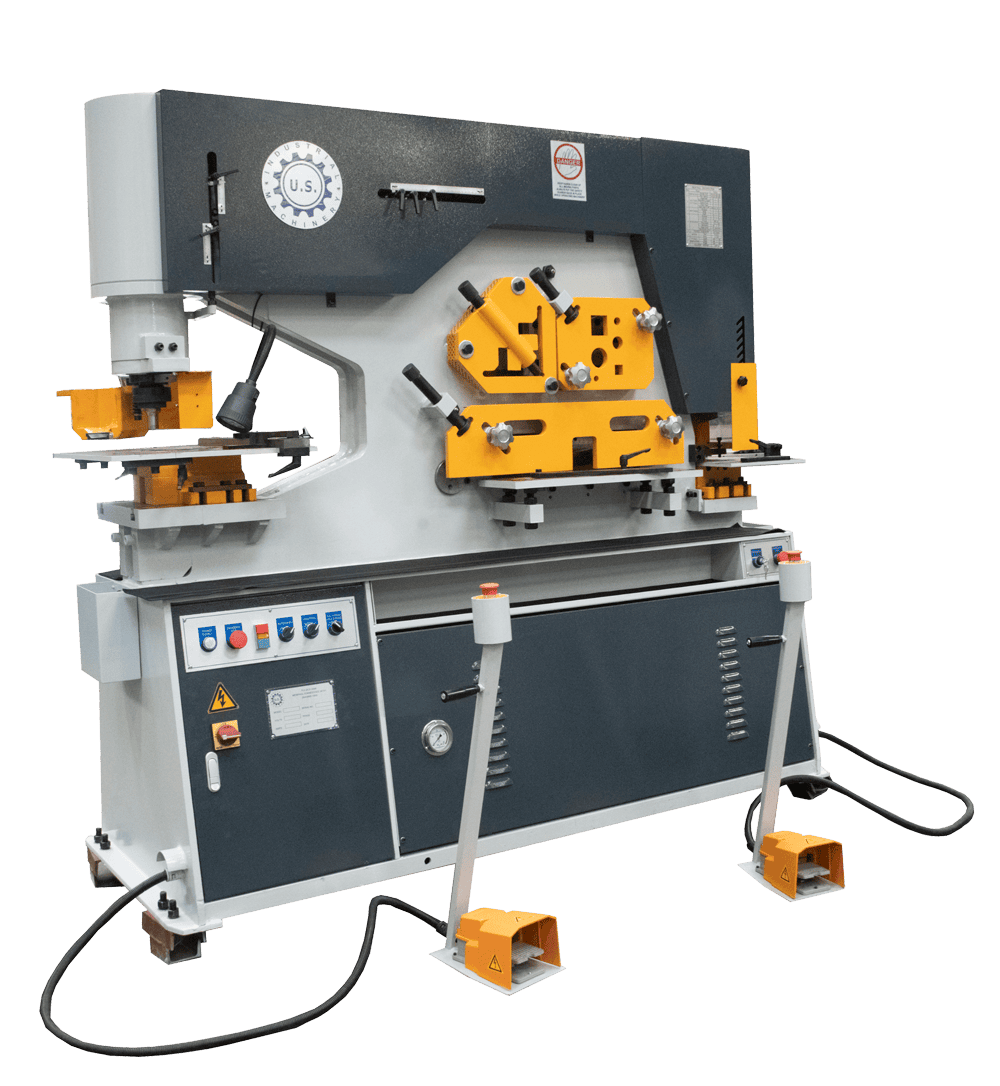

Ironworker Machines
For more than three decades, U.S. Industrial Machinery has been delivering industrial-grade ironworker machines to handle the toughest jobs nationwide. Whether you’re a local iron business serving the needs of customers in your community or a national brand shaping the next generation of automobiles, we have high-grade equipment at affordable prices to meet every level of job.
Performance You Can Trust
You can have confidence buying from us knowing that we complete the assembly, calibrate, test, and perform cosmetic upgrades of all in-coming machinery to meet the high standards we set for our products. All machines receive a final inspection complete with cosmetic upgrades to ensure the highest quality before leaving our warehouse for delivery to you. Each of our products delivers what you expect with the performance you can trust, job after job. And as always, we are here for the life of your machine to offer technical support, answer questions, and troubleshoot any issues you may be experiencing.
Ironworker Machine Features
For the most durable machines to punch, shear, notch, and bend iron, you can count on the industry’s best by U.S. Industrial Machinery. Our machines range in punch tonnage from 66 tons to 155 tons with motor horsepower between 7.5 and 20 HP. Need a customized piece of equipment? We build those too. Other standard features on each model include:
- Punch station
- Angle shear station
- Flat bar shear station
- Notching station
- Rod shear station
- Electric back-gauge
- Oversize work table with fences
- Press brake attachment
- Magnetic base work light
- Punch slug chute and bucket
DOWNLOADABLE PDF QUOTES BY IRONWORKER MODEL
Experienced Sales & Support for Ironworker Machines
When you buy from U.S. Industrial Machinery, you’ll benefit from best-in-class customer service support for your equipment. We may sell products nationwide to businesses large and small, but we have always retained a personalized approach to every customer interaction. All products come with a one-year warranty, and we are here for product support and replacement parts with additional field technicians available for servicing. Contact us for a machine quote today.
U.S. Industrial Ironworker Models
| Punch | USHI-66-DO | USHI-66-DO-XT | USHI-90-DO | USHI-90-DO-XT | USHI-125-DO | USHI-125-DO-XT | USHI-155-DO-XT |
|---|---|---|---|---|---|---|---|
| PunchPunch Tonnage | USHI-66-DO66 | USHI-66-DO-XT66 | USHI-90-DO90 | USHI-90-DO-XT90 | USHI-125-DO125 | USHI-125-DO-XT125 | USHI-155-DO-XT155 |
| PunchPunching Thickness | USHI-66-DO5/8" | USHI-66-DO-XT5/8" | USHI-90-DO3/4" | USHI-90-DO-XT3/4" | USHI-125-DO1" | USHI-125-DO-XT1" | USHI-155-DO-XT1 1/4" |
| PunchPunching Diameter | USHI-66-DO1 1/4" | USHI-66-DO-XT1 1/4" | USHI-90-DO1 1/4" | USHI-90-DO-XT1 1/4" | USHI-125-DO1 1/2" | USHI-125-DO-XT1 1/2" | USHI-155-DO-XT1 1/2" |
| PunchThroat Depth | USHI-66-DO12" | USHI-66-DO-XT17" | USHI-90-DO14" | USHI-90-DO-XT20" | USHI-125-DO16" | USHI-125-DO-XT24" | USHI-155-DO-XT30" |
| PunchStroke Length | USHI-66-DO0-3 1/8" | USHI-66-DO-XT0-3 1/8" | USHI-90-DO0-3 1/8" | USHI-90-DO-XT0-3 1/8" | USHI-125-DO0-3 1/8" | USHI-125-DO-XT0-3 1/8" | USHI-155-DO-XT0-3 1/8" |
| Flat Bar Shear | USHI-66-DO | USHI-66-DO-XT | USHI-90-DO | USHI-90-DO-XT | USHI-125-DO | USHI-125-DO-XT | USHI-155-DO-XT |
|---|---|---|---|---|---|---|---|
| Flat Bar ShearMax. Thickness | USHI-66-DO12" x 5/8" | USHI-66-DO-XT12" x 5/8" | USHI-90-DO14" x 3/4" | USHI-90-DO-XT14" x 3/4" | USHI-125-DO14" x 1" | USHI-125-DO-XT14" x 1" | USHI-155-DO-XT14" x 1 1/4" |
| Flat Bar ShearMax. Length | USHI-66-DO16" x 5/16" | USHI-66-DO-XT16" x 5/16" | USHI-90-DO18" x 5/8" | USHI-90-DO-XT18" x 5/8" | USHI-125-DO23.5" x 5/8" | USHI-125-DO-XT23.5" x 5/8" | USHI-155-DO-XT23.5" x 3/4" |
| Flat Bar ShearBlade Length | USHI-66-DO16" | USHI-66-DO-XT16" | USHI-90-DO19" | USHI-90-DO-XT19" | USHI-125-DO23.5" | USHI-125-DO-XT23.5" | USHI-155-DO-XT23.5" |
| Angle Shear | USHI-66-DO | USHI-66-DO-XT | USHI-90-DO | USHI-90-DO-XT | USHI-125-DO | USHI-125-DO-XT | USHI-155-DO-XT |
|---|---|---|---|---|---|---|---|
| Angle ShearCapacity 90 Degrees | USHI-66-DO5" x 5" x 3'8" | USHI-66-DO-XT5" x 5" x 3'8" | USHI-90-DO5-1/2" x 5-1/2" x 1/2" | USHI-90-DO-XT5-1/2" x 5-1/2" x 1/2" | USHI-125-DO6" x 6" x 5/8" | USHI-125-DO-XT6" x 6" x 5/8" | USHI-155-DO-XT7" x 7" x 5/8" |
| Angle ShearCapacity 45 Degrees | USHI-66-DO2" x 2" x 1/4" | USHI-66-DO-XT2" x 2" x 1/4" | USHI-90-DO2" x 2" x 3/8" | USHI-90-DO-XT2" x 2" x 3/8" | USHI-125-DO3" x 3" x 1/4" | USHI-125-DO-XT3" x 3" x 1/4" | USHI-155-DO-XT3" x 3" x 5/16" |
| Bar Shear | USHI-66-DO | USHI-66-DO-XT | USHI-90-DO | USHI-90-DO-XT | USHI-125-DO | USHI-125-DO-XT | USHI-155-DO-XT |
|---|---|---|---|---|---|---|---|
| Bar ShearRound | USHI-66-DO1 3/4" | USHI-66-DO-XT1 3/4" | USHI-90-DO2" | USHI-90-DO-XT2" | USHI-125-DO2 3/8" | USHI-125-DO-XT2 3/8" | USHI-155-DO-XT2 1/2" |
| Bar ShearSquare | USHI-66-DO1 5/8" | USHI-66-DO-XT1 5/8" | USHI-90-DO2" | USHI-90-DO-XT2" | USHI-125-DO2 1/8" | USHI-125-DO-XT2 1/8" | USHI-155-DO-XT2 1/8" |
| Notcher | USHI-66-DO | USHI-66-DO-XT | USHI-90-DO | USHI-90-DO-XT | USHI-125-DO | USHI-125-DO-XT | USHI-155-DO-XT |
|---|---|---|---|---|---|---|---|
| NotcherThickness | USHI-66-DO3/8" | USHI-66-DO-XT3/8" | USHI-90-DO1/2" | USHI-90-DO-XT1/2" | USHI-125-DO1/2" | USHI-125-DO-XT1/2" | USHI-155-DO-XT5/8" |
| NotcherWidth | USHI-66-DO2 1/4" | USHI-66-DO-XT2 1/4" | USHI-90-DO2 1/4" | USHI-90-DO-XT2 1/4" | USHI-125-DO2 1/4" | USHI-125-DO-XT2 1/4" | USHI-155-DO-XT2 3/8" |
| NotcherDepth | USHI-66-DO4" | USHI-66-DO-XT4" | USHI-90-DO4" | USHI-90-DO-XT4" | USHI-125-DO4" | USHI-125-DO-XT4" | USHI-155-DO-XT4" |
| Misc. Information | USHI-66-DO | USHI-66-DO-XT | USHI-90-DO | USHI-90-DO-XT | USHI-125-DO | USHI-125-DO-XT | USHI-155-DO-XT |
|---|---|---|---|---|---|---|---|
| Misc. InformationMotor | USHI-66-DO7.5 HP | USHI-66-DO-XT7.5 HP | USHI-90-DO10 HP | USHI-90-DO-XT10 HP | USHI-125-DO15 HP | USHI-125-DO-XT15 HP | USHI-155-DO-XT20 HP |
| Misc. InformationWeight | USHI-66-DO3527 LBS | USHI-66-DO-XT3527 LBS | USHI-90-DO5260 LBS | USHI-90-DO-XT5260 LBS | USHI-125-DO10,560 LBS | USHI-125-DO-XT10,560 LBS | USHI-155-DO-XT14,960 LBS |
| Misc. InformationL x W x H | USHI-66-DO64" x 28" x 69" | USHI-66-DO-XT64" x 28" x 69" | USHI-90-DO73" x 35" x 74" | USHI-90-DO-XT73" x 35" x 74" | USHI-125-DO92" x 37" x 82" | USHI-125-DO-XT92" x 37" x 82" | USHI-155-DO-XT105" x 40" x 90" |
| Misc. InformationOil Capacity | USHI-66-DO20 GAL. | USHI-66-DO-XT20 GAL. | USHI-90-DO25 GAL. | USHI-90-DO-XT25 GAL. | USHI-125-DO33 GAL. | USHI-125-DO-XT33 GAL. | USHI-155-DO-XT64 GAL. |
| Price (FOB Memphis) | USHI-66-DO | USHI-66-DO-XT | USHI-90-DO | USHI-90-DO-XT | USHI-125-DO | USHI-125-DO-XT | USHI-155-DO-XT |
|---|---|---|---|---|---|---|---|
| Price (FOB Memphis) | USHI-66-DO$21,990.00 | USHI-66-DO-XT$22,990.00 | USHI-90-DO$23,990.00 | USHI-90-DO-XT$27,990.00 | USHI-125-DO$37,990.00 | USHI-125-DO-XT$41,990.00 | USHI-155-DO-XT$54,990.00 |
Contact Us for a Quote
