Lathes

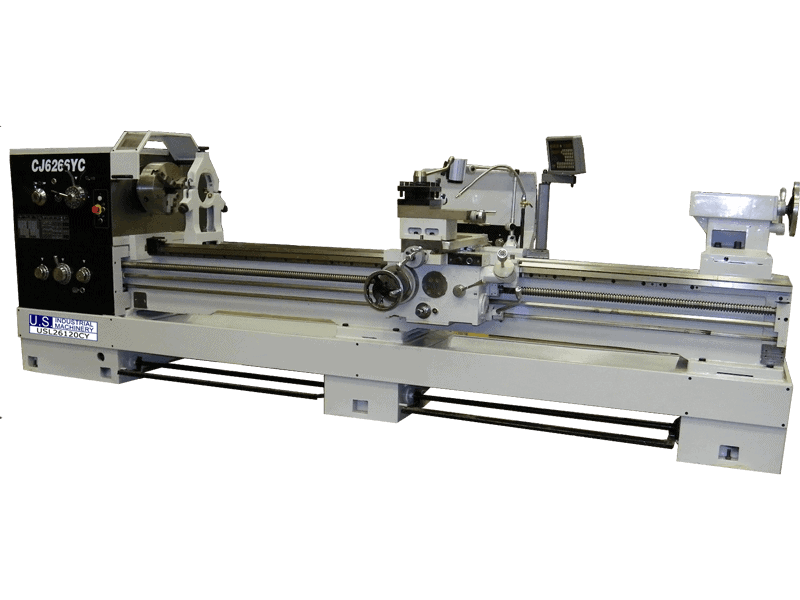

Precision Geared Head Engine Lathes
U.S. Industrial Machinery is your headquarters for precision-geared head engine lathes to complete jobs that require precise shaping of metals. Our standard stock machines range in size from 13 x 40 to 26 x 120, however; we can accommodate custom lathes of any size. In addition to our competitive prices, customers benefit from our continued support and troubleshooting assistance throughout the entire life of their machine. When you buy from us, we are here when you need us to offer any technical help you need. Most of our machines come with a one-year warranty on parts and labor. Need a lathe for bigger jobs than our standard line covers? Contact us for a custom quote.
Standard Line Engine Lathe Features
All lathes are assembled in our Memphis, TN facility and undergo complete testing, calibration, and adjustments to ensure optimal performance when delivered. Most standard model lathes include the following features:
- 3-jaw chuck and 4-jaw chuck
- Face plate and dog plate
- Chuck guard
- Steady rest and follow rest
- Splash guard
- Flood coolant
- Thread dial
- Digital readout
- Taper attachment
Heavy Duty Geared Head Engine Lathe
For more demanding work and the ultimate execution of rigorous jobs, we offer a heavy-duty geared head engine lathe for heavy turning. When your industry or profession calls for it, we deliver with some of the most substantial machinery in the business. This heavy-duty lathe features:
- Weight capacity between centers of more than 40,000 lbs
- Swing of 40” to 120”
- Center Distance of 10’ to 80’
- High horsepower headstock
- Hydraulic tailstock quill and power travel
- Rotating center and 3-jaw chuck on tailstock
- Heavy-duty roller support
- Heavy-duty steady rest
- Extensive four-way bed
Find a High-Performance Lathe Today
U.S. Industrial Machinery offers a complete line of precision lathes to handle jobs of all sizes for customers from every industry. No matter how large or small your needs are, we offer excellent customer service, technical support, and a one-year warranty on every product. Contact us to find the perfect lathe for your company today.
DOWNLOADABLE PDF QUOTES BY LATHE MODEL
For machine specifications and pricing, please click the below links.
U.S. Industrial Standard Lathes
Most models include:
- 3-Jaw Chuck & 4-Jaw Chuck
- Face Plate & Dog Plate
- Chuck Guard
- Steady Rest & Follow Rest
- Splash Guard
- Flood Coolant
- Thread Dial
- Digital Readout
- Taper Attachment
| USL1340BH-KIT | USL1640CX-KIT | USL1660CX-KIT | USL2080BH-KIT | USL20120BH-KIT | USL26120BH-KIT | |
|---|---|---|---|---|---|---|
| Swing over bedways | USL1340BH-KIT12.99" | USL1640CX-KIT16.53" | USL1660CX-KIT16.53" | USL2080BH-KIT19.7" | USL20120BH-KIT19.7" | USL26120BH-KIT26.0" |
| Swing over cross slide | USL1340BH-KIT7.79" | USL1640CX-KIT8.85" | USL1660CX-KIT8.85" | USL2080BH-KIT11.8" | USL20120BH-KIT11.8" | USL26120BH-KIT16.53" |
| Swing over gap | USL1340BH-KIT18.74" | USL1640CX-KIT21.65" | USL1660CX-KIT21.65" | USL2080BH-KIT28.0" | USL20120BH-KIT28.0" | USL26120BH-KIT34.25" |
| Distance between centers | USL1340BH-KIT39.37" | USL1640CX-KIT39.37" | USL1660CX-KIT59.05" | USL2080BH-KIT78.74" | USL20120BH-KIT118" | USL26120BH-KIT118" |
| Spindle bore | USL1340BH-KIT2.008" | USL1640CX-KIT3.15" | USL1660CX-KIT3.15" | USL2080BH-KIT4.134" | USL20120BH-KIT4.134" | USL26120BH-KIT4.134" |
| Spindle speeds range - RPM | USL1340BH-KIT90 to 2000 | USL1640CX-KIT24 to 1600 | USL1660CX-KIT24 to 1600 | USL2080BH-KIT36 to 1600 | USL20120BH-KIT36 to 1600 | USL26120BH-KIT36 to 1600 |
| Longitudinal feed range - IPR | USL1340BH-KIT.0049 to .0656 | USL1640CX-KIT.0027 to .150 | USL1660CX-KIT.0027 to .150 | USL2080BH-KIT.0023 to .0937 | USL20120BH-KIT.0023 to .0937 | USL26120BH-KIT.0023 to .0937 |
| Cross feed range - IPR | USL1340BH-KIT.0016 to .0210 | USL1640CX-KIT.00135 to .075 | USL1660CX-KIT.00135 to .075 | USL2080BH-KIT.0011 to .0404 | USL20120BH-KIT.0011 to .0404 | USL26120BH-KIT.0011 to .0404 |
| Metric Threading range | USL1340BH-KIT.45 to 10mm | USL1640CX-KIT.5 to 28mm | USL1660CX-KIT.5 to 28mm | USL2080BH-KIT1 to 14mm | USL20120BH-KIT1 to 14mm | USL26120BH-KIT1 to 14mm |
| Inch Threading range -TPI | USL1340BH-KIT2-1/4 to 40 | USL1640CX-KIT1 to 56 | USL1660CX-KIT1 to 56 | USL2080BH-KIT2 to 28 | USL20120BH-KIT2 to 28 | USL26120BH-KIT2 to 28 |
| Tailstock taper | USL1340BH-KITNo. 3 MT | USL1640CX-KITNo. 5 MT | USL1660CX-KITNo. 5 MT | USL2080BH-KITNo. 5 MT | USL20120BH-KITNo. 5 MT | USL26120BH-KITNo. 5 MT |
| Spindle power | USL1340BH-KIT2 HP | USL1640CX-KIT10 HP | USL1660CX-KIT10 HP | USL2080BH-KIT10 HP | USL20120BH-KIT10 HP | USL26120BH-KIT10 HP |
| Power requirement | USL1340BH-KIT220V, 1ph | USL1640CX-KIT220/440V, 3ph | USL1660CX-KIT220/440V, 3ph | USL2080BH-KIT220/440V, 3ph | USL20120BH-KIT220/440V, 3ph | USL26120BH-KIT220/440V, 3ph |
| Gross Weight | USL1340BH-KIT1,400 lbs | USL1640CX-KIT3,900 lbs | USL1660CX-KIT4,400 lbs | USL2080BH-KIT6,500 lbs | USL20120BH-KIT7,700 lbs | USL26120BH-KIT8,500 lbs |
| Crated Dimensions- LxWxH | USL1340BH-KIT77" x 30" x 60" | USL1640CX-KIT100" x 48" x 60" | USL1660CX-KIT120" x 48" x 60" | USL2080BH-KIT147" x 40" x 50" | USL20120BH-KIT183" x 40" x 50" | USL26120BH-KIT183" x 40" x 55" |
| 3-jaw chuck - diameter | USL1340BH-KIT8" | USL1640CX-KIT10" | USL1660CX-KIT10" | USL2080BH-KIT12" | USL20120BH-KIT12" | USL26120BH-KIT12" |
| 4-jaw chuck - diameter | USL1340BH-KIT8" | USL1640CX-KIT12" | USL1660CX-KIT12" | USL2080BH-KIT16" | USL20120BH-KIT16" | USL26120BH-KIT16" |
| Faceplate - diameter | USL1340BH-KIT10" | USL1640CX-KIT15" | USL1660CX-KIT15" | USL2080BH-KIT 25" | USL20120BH-KIT25" | USL26120BH-KIT25" |
| 4-way toolpost is included | USL1340BH-KIT<5/8" square | USL1640CX-KIT<1" square | USL1660CX-KIT<1" square | USL2080BH-KIT<1-1/4" square | USL20120BH-KIT<1-1/4" square | USL26120BH-KIT<1-1/4" square |
| Sino 2-axis digital readout | USL1340BH-KITIncluded | USL1640CX-KITIncluded | USL1660CX-KITIncluded | USL2080BH-KITIncluded | USL20120BH-KITIncluded | USL26120BH-KITIncluded |
| Steady rest | USL1340BH-KITIncluded | USL1640CX-KITIncluded | USL1660CX-KITIncluded | USL2080BH-KITIncluded | USL20120BH-KITIncluded | USL26120BH-KITIncluded |
| Follow rest | USL1340BH-KITIncluded | USL1640CX-KITIncluded | USL1660CX-KITIncluded | USL2080BH-KITIncluded | USL20120BH-KITIncluded | USL26120BH-KITIncluded |
| Micrometer carriage stop | USL1340BH-KITIncluded | USL1640CX-KITIncluded | USL1660CX-KITIncluded | USL2080BH-KITIncluded | USL20120BH-KIT-- | USL26120BH-KIT-- |
| Thread dial | USL1340BH-KITIncluded | USL1640CX-KITIncluded | USL1660CX-KITIncluded | USL2080BH-KITIncluded | USL20120BH-KITIncluded | USL26120BH-KITIncluded |
| Work lamp | USL1340BH-KITIncluded | USL1640CX-KITIncluded | USL1660CX-KITIncluded | USL2080BH-KITIncluded | USL20120BH-KITIncluded | USL26120BH-KITIncluded |
| Taper attachment | USL1340BH-KITIncluded | USL1640CX-KITIncluded | USL1660CX-KITIncluded | USL2080BH-KITIncluded | USL20120BH-KITIncluded | USL26120BH-KITIncluded |
| Rear splash guard | USL1340BH-KITIncluded | USL1640CX-KITIncluded | USL1660CX-KITIncluded | USL2080BH-KITIncluded | USL20120BH-KITIncluded | USL26120BH-KITIncluded |
| Chuck guard | USL1340BH-KITIncluded | USL1640CX-KITIncluded | USL1660CX-KITIncluded | USL2080BH-KITIncluded | USL20120BH-KITIncluded | USL26120BH-KITIncluded |
| Flood coolant system | USL1340BH-KITIncluded | USL1640CX-KITIncluded | USL1660CX-KITIncluded | USL2080BH-KITIncluded | USL20120BH-KITIncluded | USL26120BH-KITIncluded |
| Slide out chip trays | USL1340BH-KITIncluded | USL1640CX-KITIncluded | USL1660CX-KITIncluded | USL2080BH-KITIncluded | USL20120BH-KITIncluded | USL26120BH-KITIncluded |
| Price - F.O.B. Memphis, TN | USL1340BH-KIT$11,950.00 | USL1640CX-KIT$22,990.00 | USL1660CX-KIT$25,990.00 | USL2080BH-KIT$34,990.00 | USL20120BH-KIT$38,990.00 | USL26120BH-KIT$44,990.00 |
Contact Us for a Quote
